Data Sheet

Product Code:

TPE-224WS

Summary:

24 x 10/100 Mbps PoE ports, Ports 1-4 support PoE+ (30 Watts/port), 4 x Gigabit ports, 2 x shared SFP slots, 193 Watt PoE budget, 12.8 Gbps switching capacity, Rack mountable

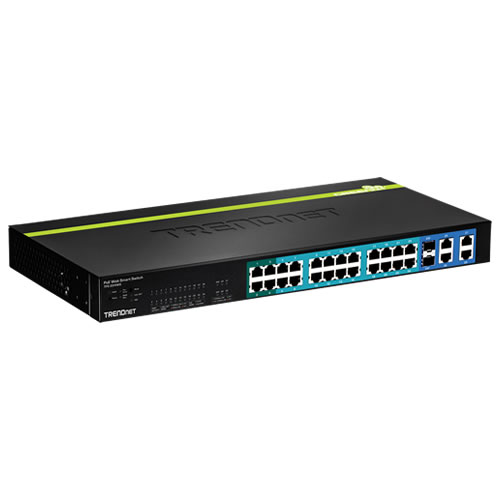

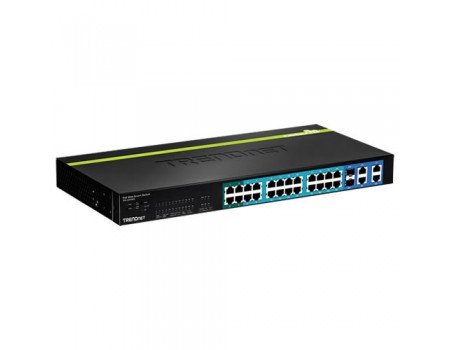

TRENDnet 24-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 4 x Gigabit ports, 2 x shared SFP slots, and a PoE Power budget of 193 Watts. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

  • 24 x 10/100 Mbps PoE ports
  • Ports 1-4 support PoE+ (30 Watts/port)
  • 4 x Gigabit ports
  • 2 x shared SFP slots
  • 193 Watt PoE budget
  • 12.8 Gbps switching capacity
  • Rack mountable
  • Smart fans reduce energy consumption
  • Limited Lifetime Warranty
...
Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af (15.4 Watts/port)
IEEE 802.3at (30 Watts/port)
IEEE 802.3az

Device Interface 24 x 10/100 Mbps PoE ports (ports 1-4 PoE+, ports 5-24 PoE)
4 x Gigabit ports (ports 25-28)
2 x Shared SFP slots (shared with ports 25-26)
LED indicators
LED Display Mode Button (Toggles LED indicators to display Link/Activity or PoE only port status)
Reset Button
Data Transfer Rate Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
Performance Switch fabric: 12.8 Gbps
Ram buffer: 0.5 MB
MAC Address Table: 8 K entries
HOL Blocking Prevention
Forwarding rates: 9.5 Mpps (64-byte packet size)
Management HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP
Virtual Cable Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB MIB II RFC 1213
Bridge MIB RFC 1493
Bridge MIB Extension RFC 2674
SNMPv2 MIB RFC 1907
Ethernet Interface MIB RFC 1643
Ethernet like MIB RFC 2863
Interface Group MIB RFC 2233
MIB Traps Convention RFC 1215
RMON MIB RFC 1757, RFC 2819
802.1p MIB RFC 2674
RADIUS Client Authentication MIB RFC 2618
LLDP-MIB IEEE 802.1ab
Ping MIB RFC 2925, RFC 4560
Spanning Tree IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS) 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries
Port Mirror RX, TX, or Both
One-to-one
Many-to-one
Access Control 802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Compatibility Optional Software Utility: Windows 8, 7, Vista, XP, Windows 2003/2008 Server
Special Features PoE+ (ports 1-4)
IPv6
802.3az power saving
Rack mountable
Power Input: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 239.7 Watts (max.)
PoE PoE budget: 193 Watts
Pin 3,6 for power+ and pin 1,2 for power- (mode A)
Fan/Acoustics Smart fans turn on when needed
Quantity: 2
Noise Level: 54 dB(A) (max.)
MTBF 281,394 hours
Operating Temperature -5 50 °C (23 122 °F)
Operating Humidity Max 90% non-condensing
Dimensions 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
Rack mountable 1U height
Weight 3.23 kg (7.12 lbs.)
Certifications CE
FCC
Warranty Limited Lifetime Warranty
