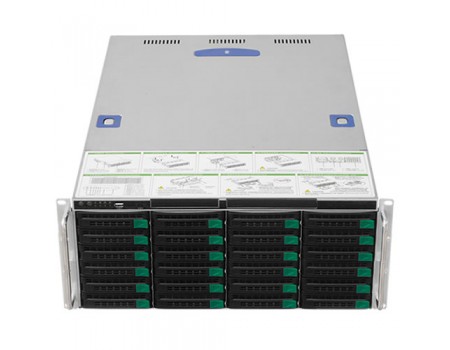

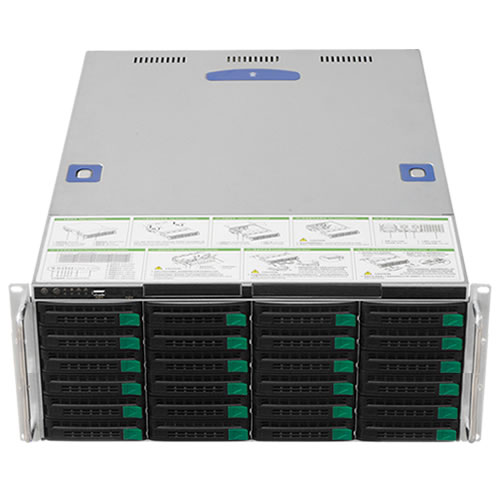

NVSS 256CH Essential Series Super NVR (24 Hot-Swap, Remote Support, RAID 5/6)
Data Sheet
Product Code:
Product Code:
NVSS6724A02
Summary:256CH, 5MP, 3MP, 1080P, 720P, D1, Support 24 hot-swap SATA HDDs, 6TB for each, Embedded Linux, HDMI, Audio, H.264, 3x 1000Mbps RJ45 Ports, 4x USB, Multiple network monitoring, Remote Support, RAID 5/6
- X86 embedded linux super NVR,with SV4-B85B4 motherboard + intel i7 CPU + 8G RAM
- Up to 256 pcs 5M / 3M /1080P IPC connections and recording & total 256Mbps input
- Up to 9ch 5M / 4M / 3M / 16ch 1080P or 32ch 720P or 64ch D1 realtime preview
- Up to 9ch 5M / 4M / 3M / 16ch 1080P or 16ch 720P relatime playback
- Support 24 hot-swap SATA HDDs, Raid5/6 fucntion
- Support all netvision series IPC, Dahua, hikvision,Nihon etc
- ONVIF Version 2.3 conformance, support motion record with ONVIF IPC
- Support 7 different video analysis function
- 2 HDMI + 1 VGA; 3 intel 1000M network adapter; I/O: 4 inputs / 2 outputs; 4U case
- With A02 mSata card by default (linux destop version OS)
| Model | NVSS6724 |
| Main Processor | Intel i7 CPU |
| RAM | 16GB |
| Operating System | 64bit Linux OS |
| System Resources | live, recording, playback, backup & remote access |
| Control Mode | Mouse |
| IP Camera Input | 256ch@M / 4M / 3M / 1080P / 720P / D1 |
| IP Camera Supported List | Netvision, Hikvision, Dahua, XiongMai, Topsee, NIHON, ONVIF etc. IP cameras |
| Video Output | 1ch VGA + 2ch HDMI interface, Only support one monitor at present, HDMI output 4K |
| Voice Intercom | 1ch audio & 1ch Mic in, 1ch audio out |
| Display Split | 1/4/6/9/13/16/20/28/33/36/49/64 |
| Resolution | 3840*2160(only HDMI) / 1920*1080 / 1680*1050 / 1440*900 / 1280*1024 / 1024*768 |
| Tour Display | -- |
| OSD | Camera title, time, date, video loss, recording |
| Compression | -- |
| Recording Resolution | 256ch@5M / 4M / 3M / 1080P / 720P / D1 |
| Max Encoding Speed | -- |
| Recording Bit Rate | 512Mbps |
| Recording Quality | -- |
| Recording Mode | Manual, Schedule(Regular(Continuous), MD(Motion detection), Sensor Alarm), Stop |
| Recording Priority | Manual >Alarm >MD >Regular |
| Trigger Events | Recording, PTZ movement, Alarm, Email, Buzzer |
| Motion Detection | Support |
| Video Loss & Camera Blank | Support |
| Alarm Input | 4ch, low level effective, green terminal interface |
| Relay Output | 2ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface |
| Playback Channel | 16ch 5M / 4M / 3M / 1080P / 720P / D1 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search, Icon Search |
| Playback Function | Simultaneous play, single frame, Icon Search, Record mode filter, Backup, Grab |
| Backup Mode | Network download / USB HDD |
| Ethernet | 3 RJ-45 ports(1000M) |
| Max Remote Users | -- |
| Hard Disk | 24 SATAII, 6TB for each; Independent HDD rack, support hot swap |
| HDD Management | support RAID 5, 6 |
| USB Interface | 4 USB ports |
| RS232 | -- |
| Power Supply | 100V-240Vac, 47-63Hz |
| Power Consumption | Max. 1200W(Include HDD) |
| Working Environment | Temperature: 0°C~60°C; Humidity: 10%~80% ( non-condensation) |
| Dimension | 650mmx440mmx176mm (WxDxH), 4U case |
| Weight | 28Kg |
