Data Sheet

Product Code:

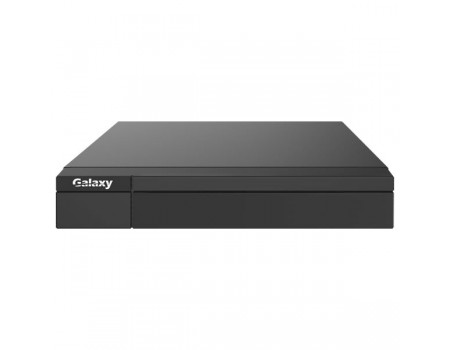

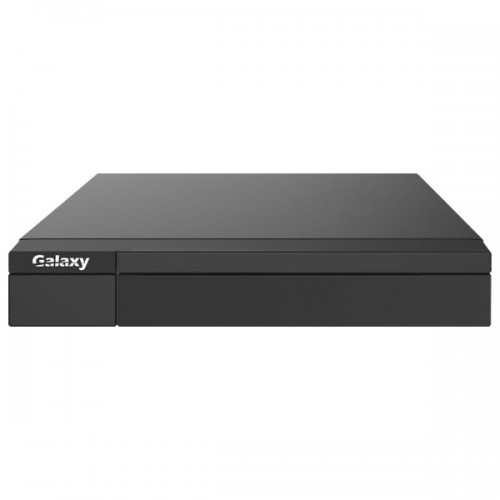

NVR8208-P8

Summary:

4K/8MP, 3840x2160, Incoming 80Mbps, 2x8MP@30fps, 4x4MP@30fps, 5x3MP@30fps, 8x2MP@30fps, 1x 4K HDMI, 1x VGA, Audio 1in/1out, Alarm 4in/1out, 8x RJ45, 2x SATA up to 10TB/ea, 1x USB2.0, 1x USB3.0, ANR, Cloud Upgrade, Onvif, 1U

  • Support Ultra265/H.265/H.264 video formats
  • 8-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Video/Audio Input
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Decoding
Decoding format Ultra265/H.265/H.264
Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30
Hard Disk
SATA 2 SATA interfaces
Capacity Up to 10TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 130W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC
Power Consumption: <=10W(without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity <= 90% RH (non-condensing)
Dimensions (WxDxH) 380mm x315mm x 53mm (14.9" x 12.4" x2.1")
Weight (without HDD) <=2.6kg (5.73lb)
