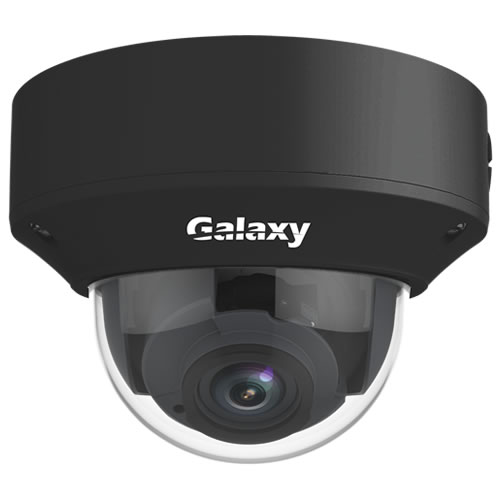

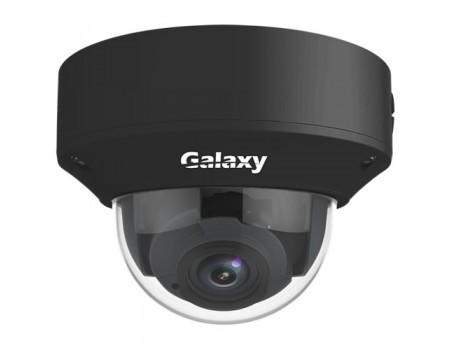

Galaxy Pro 5MP Starlight IP Motorized Dome
Galaxy Pro 5MP Starlight IP Motorized Dome
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX785FSL-BL

Summary:

Galaxy Pro 5mp Starlight Ip Motorized Dome / 120db True Wdr / Ip67 / Ik10 / 3 Axis / 30 Meters Ir Distance / Build In Analytics / Ultra H.265 / Poe / Microsd Card Build In / Alarm / Audio / 2.7~13.5mm / 0.001 Lux Starview / Black Color / Optional Junction

Login for price

Optics
• Starlight illumination

• Day/night functionality

• Smart IR, up to 30m (98 ft) IR distance

• Up to 120 dB Optical WDR(Wide Dynamic Range)

• 2D/3D DNR (Digital Noise Reduction)

• Built-in motorized lens for remote zoom

Compression
• Ultra 265, H.264, MJPEG

• Embedded smart algorithm

• Triple streams

• ROI (Region of Interest)

• 9:16 corridor mode

Network
• ONVIF Conformance

Structure
• Support PoE power supply

• Built-in PoE splitter that outputs DC 12V

• Wide temperature range: -40°C to 60°C (-40°F to 140°F)

• Wide voltage range of ±25%

• IK10 vandal resistant

• IP67

• 3-Axis
Camera
Sensor1/2.7?, progressive scan ,5.0 megapixel, CMOS
Lens2.7~13.5mm?AF automatic focusing and motorized zoom lens
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.7mm60.824.312.26.1
13.5mm303.8121.560.830.4
Angle of View (H)93.38° ~ 28.56°
Angle of View (V)88°~ 16.4°
Angle of View (O)121.4°~33.7°
Adjustment anglePan: 0°~360°Tilt: 0°~80°Rotate: 0°~360°
ShutterAuto/Manual, shutter time: 1~1/100000 s
Minimum IlluminationColour: 0.002 Lux (F1.2, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 5MP(2592 x 1944): Max. 20 fps, 5MP(2592 x 1944): Max. 25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps;
Sub Stream:2MP(1920 x 1080): Max. 30 fps;
Third Stream: D1(720 x 576): Max.3 0 fps;
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection?Audio detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/OAudio cable
Input: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O1/ 1
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 ?; amplitude 1 V [p-p]
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max.8.7W
Dimensions (Ø x H)?148 x 111.3 mm (Ø5.8” x 4.4”)
Weight0.92 kg (2.0 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity ? 95% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported

Junction Box

GX-BK-JB84XB


Wall Mount

GX-BK-WM04DB
