Data Sheet

Product Code:

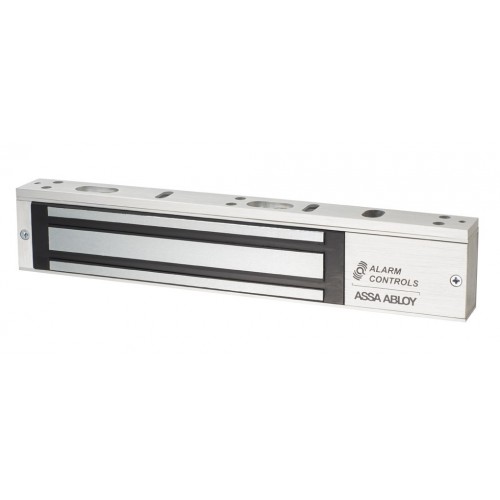

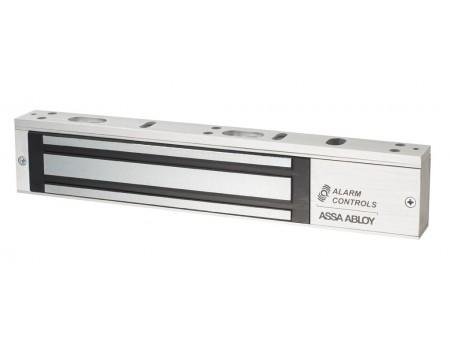

GX-K600S

Summary:

Instant release, no hysteresis Non-aluminum parts are plated to resist corrosion Built-in arc suppression Can be used with any access control system E-Z mount system, no special tools required Self drilling TEC screws Limited lifetime warranty


  • 600 lbs holding force
  • Magnet size: 9-7/8" L x 1-11/16" H x 1" W
  • Armature size: 7-1/4" L x 1-7/16" H x 5/8" W
  • Operates on 12 or 24 VDC, switch selectable
  • Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
  • Operating Temperature: +14 to +131F [-10 to +55C]
  • UL 10C, UL 294 and ULC-S104 (Canada) listed
