Data Sheet

Product Code:

HDD-SG-SK10TB

Summary:

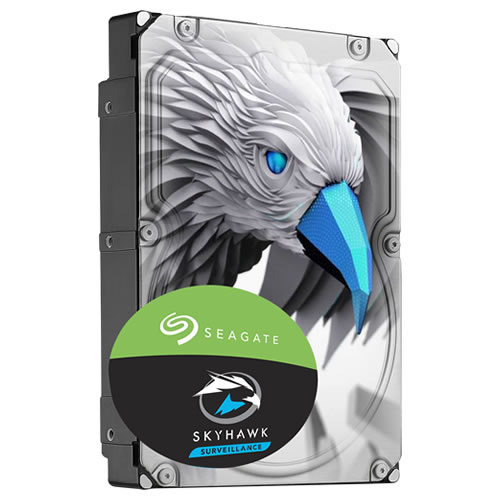

10TB, 3.5inch, 7200RPM 256MB Cache, SATA 6Gb/s

  • ImagePerfect firmware supports 24x7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives.
  • Workload rating of 180TB/year allows SkyHawk to perform reliably in write-intensive
    surveillance systems3x the workload rating of a desktop-class drive.
  • NVR-ready design allows drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed.
  • ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage.
  • Up to 10TB or over 2000 hours of HD video storage supports an increased number of cameras and helps to ensure longer data retention periods are met.
  • 1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
  • Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions.
  • Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Best-Fit Applications
  • Network video recorders (NVR)
  • Embedded surveillance DVRs (SDVR)
  • Hybrid surveillance DVRs
  • Surveillance DVRs
Standard Model Numbers ST10000VX0004
Interface SATA 6Gb/s
Features and Performance
Drive Bays Supported 8+
Cameras Supported Up to 64
Max Sustained Transfer Rate OD (MB/s) 210
Cache (MB) 256
Reliability/Data Integrity
Tarnish Resistant Yes
Load/Unload Cycles 300,000
Nonrecoverable Read Errors Rate, Max 1 per 10E15
Power-On Hours per year 8760
Workload Rate Limit (WRL) 180
Mean Time Between Failures (MTBF) (hours) 1M
Warranty, Limited (years) 3
Power Management
Startup Current, Typical (12V, A) 1.8
Average Operating Power (W) 6.8
Idle Average (W) 4.42
Standby Mode/Sleep Mode, Typical (W) 0.8/.08
Voltage Tollerance (5V) +/-5%
Voltage Tolerance (12V) +/-10%
Environmental/Temperature
Operating (ambient, min °C) 5
Operating (drive case, max °C) 70
Nonoperating (ambient, min °C) -40
Physical
Height (mm/in, max) 26.11/1.028
Width (mm/in, max) 101.85/4.01
Depth (mm/in, max) 146.99/5.787
Weight (g/lb, typical) 650/1.433
Carton Unit Quantity 20
Cartons per Pallet/Cartons per Layer 40/8
