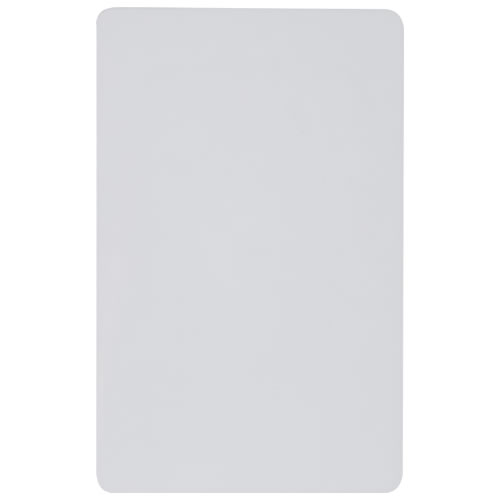

13.56MHz Mifare Card For Access Control
13.56MHz Mifare Card For Access Control
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX-KC1356M

Summary:

13.56 MHz frequency, Anti-conflict, 10-year data storage, Triple accreditation (ISO/IEC DIS9798-2)

Login for price
  • 13.56 MHz frequency
  • Anti-conflict
  • 10-year data storage
  • Triple accreditation (ISO/IEC DIS9798-2)
MIFARE RF Interface ISO/IEC 14443 A, Non-Contacting data transmission and supplied power(no battery needed)
Working distance No more than 100mm (depends on the antenna dimension)
Working frequency 13.56 MHz
High data transmission speed 106 kbit/s
Data integrity protection 16 bit CRC, odd-even check, encoding and counting by bit, Anti-conflict
Data transmission and processing time
EEPROM 1 k byte (16 zones, 4 sections per zone, 16 bytes per section), User definable reading/writing condition for memory block
Long time data storage 10 years, 100,000writing times
Security Triple accreditation(ISO/IEC DIS9798-2); Attack protective radio-frequency channel data encryption; Two security keys (support multiple security levels) for each section; Only one serial No. for one card; Transmission security key to protect the access right of EEPROM during the transmission
